YUNYI Digtal Temperature Humidity Sensor Transmitter Wall Mounted

Name: YUNYI Digtal Temperature Humidity Sensor Transmitter Wall Mounted
Brand: Yunyi
Price: 1 USD

Brand Name : Yunyi

Model Number : FM114

Place of Origin : China

MOQ : 1

Payment Terms : T/T, Western Union

Supply Ability : 500pcs per week

Delivery Time : 5-8 work days

Packaging Details : carton

Name : Wall Mounted Digtal Temperature Humidity Sensor Transmitter

Material : ABS plastic

Pressure : 0-10000pa

Output : 4-20mA,

Power : 24V

Temperature : -20-80c

Display : Yes

Medium temperature : - 40-100 ℃

Ambient temperature : - 40-85 ℃

Contact Now

YUNYI Digtal Temperature Humidity Sensor Transmitter Wall Mounted

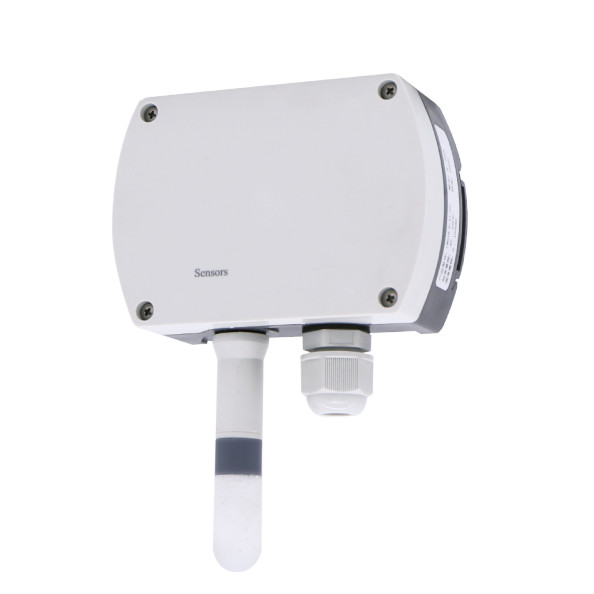

Wall Mounted Digtal Temperature Humidity Sensor Transmitter

The sensor adopts high-precision temperature and humidity integrated

chip. The temperature is measured by using the diode temperature sensing

p-n junction and the characteristics of forward voltage reduction

varying with temperature under constant current. Humidity is measured by

humidity sensitive capacitance, which changes with the change of

humidity and capacitance value. The temperature and humidity are

compensated for each other, and then amplified into standard digital or

analog signals of relative humidity and temperature through the

amplification circuit.

Features Wall Mounted Digtal Temperature Humidity Sensor Transmitter

a) Good long-term stability and full range temperature compensation

b) Wide operating temperature range

c) The temperature range can be selected by multiple parameters

d) Easy to install, wall mounted, rail mounted

e) High dust resistance and protection grade

f) LCD liquid crystal display

Parameter Wall Mounted Digtal Temperature Humidity Sensor Transmitter

Measuring medium: gas (compatible with contact material)

Temperature range: - 40 ~ 0 ~ 125 ℃

Humidity range: 0-100% RH (relative humidity)

Overall weight: with display ≈ 160g, without display ≈ 138g

Response frequency: ≤ 2Hz

Stability: ± 1% RH FS / year ± 0.2 ℃ / year

Protection grade: IP65

Response speed: the temperature is 10 ℃ per step, the humidity is 10% RH per step, and the gas flow rate is 0.1m/s.
